Girodisc Performance Rotors
SuncoastParts.com is proud to offer Girodisc racing brake rotors.
Performance rotors for the track. Reduced weight & improved cooling.

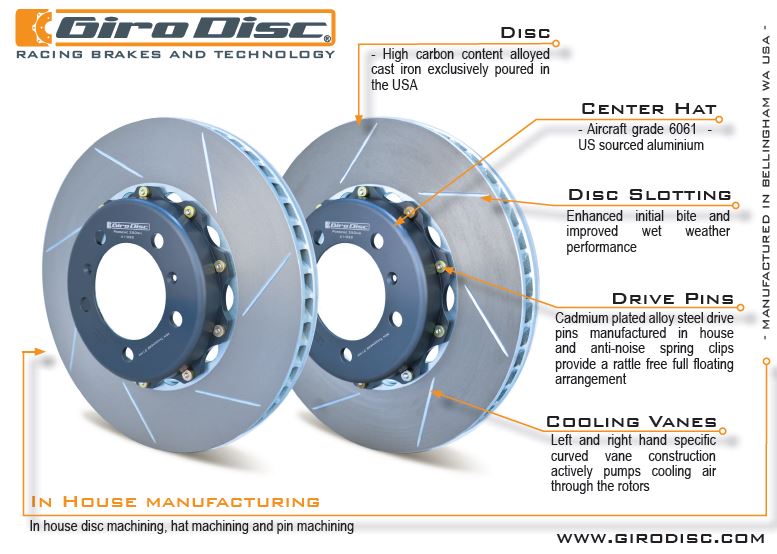

The primary purpose of the Girodisc system is to reduce unsprung and overall vehicle weight. The secondary purpose is to increase the ventilation and cooling capacity of the brake disc while retaining it's original dimensions. This is accomplished by using two-piece disc construction. The central “hat” section of the disc is made from 6061-T6 aircraft specification aluminum.
The disc is made from cast iron, to the same specification and material as used by professional racing organizations. It is a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc. The rotor and hat have a floating mount system, which utilizes high strength alloy steel drive pins, manufactured by Girodisc to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring clips on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
The Girodisc system is a direct replacement for the OE disc. No modifications are necessary. The disc will bolt directly to the car and work with OE calipers and pads perfectly. Once the Girodisc system is in place, simply replace the cast iron rotor when needed. Some discs are larger in diameter and come with caliper spacers. If longer bolts are required, they are also supplied. The innovative two piece design is lighter than conventional steel rotors, can save 4-8 pounds of weight compared to the factory rotors.
Brake upgrades available for the following models:
- 996 GT3
- 997.2 Carrera S/4S/Targa/GTS
- 991 CarreraS/4S/Targa 4S/GTS
- 991.2 CarreraS/4S/Targa 4S/GTS
- 992 GT3
- 987.2 Boxster S/Boxster Spyder
- 718 Boxster S & Boxster GTS 2.5
- 718 Cayman S & Cayman GTS 2.5
Select your model above.
Choose your model above and see any notes about your specific fitment. Please not that cars with ceramic brake system (PCCB) has different brake rotor sizing. If you're unsure, contact us for assistance. These rotors are intended for offroad use only, Girodisc recommends professional installation and regular brake inspections.
